V Pressed powder coated Weld Mesh Fencing
V pressed Vinyl coated welded mesh fencing

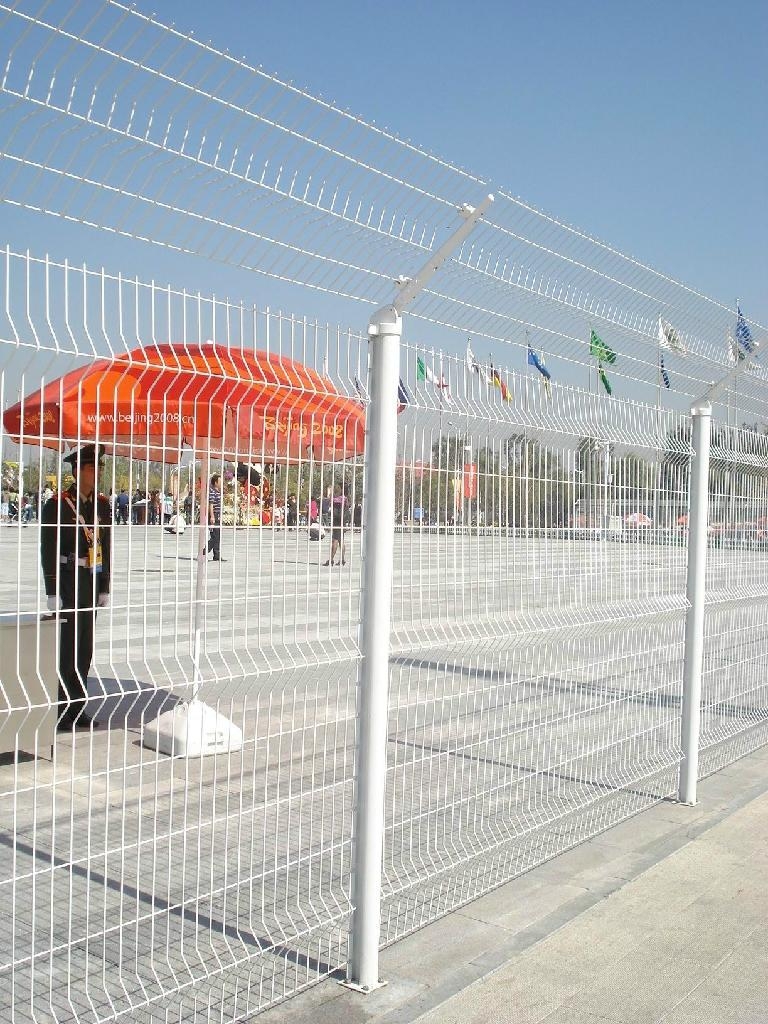

Suited to most types of boundary, general security and anti-intruder fencing needs.
Welded Mesh Fencing is cost effective alternative to chain link, providing a high level of security without an oppressive and intimidating appearance. The small spacings of the vertical wires make it difficult to climb but allow enhanced visibility
The specification of V pressed Galvanized Welded Mesh Fencing
|
Grid Opening
|
200×50mm
|
|||
|
Horizontal Wires
|
5mm diameter at 200mm centres
|
|||
|
Vertical Wires
|
5mm diameter at 50mm centres
|
|||
|
Appearance
|
30mm barbed top edge and integral v’ shaped reinforcing beams for enhancement of rigidity and appearance
|
|||
|
Fence Height
|
Panel Size H/W
|
Weight/Panel
|
No. Beams
|
|
|
1.8m
|
1830 x2500mm
|
19.0kg
|
3
|
|
|
2.0m
|
2030 x2500mm
|
22.6kg
|
4
|
|
|
2.4m
|
2430 x2500mm
|
27.0kg
|
4
|
|
| Packaging Details: | Fence panel : plastic flim+wood/metal pallet. Fence post : every post pack with a plastic bag(the cap is covered well on the post)+pallet. Accessory: small plastic bag and (or )carton box |
| Delivery Detail: | within 10 days after receiving the advance payment |
